Overview
Features
- Generates NFPA 1901 rated flows up to 1000 GPM (3785 L/min) from draft
- Hard, fine grain bronze, mixed flow impeller design is hand ground and balanced for maximum performance and corrosion resistance
- For minimal maintenance, the spring-loaded mechanical seal is self-adjusting and self-lubricating
- Heavy duty precision ground, deep groove bearings used for long-life
- Heat treated, one piece stainless steel pump shaft has been designed for strength and to minimize pump deflection
- Bronze clearance rings are easily replaceable for simple service
Performance
- Engine Rotation
- More Gear Ratios Available: (All gears are helical for smooth, quiet operation)
|
1.14 |
1.31 | 1.64 | 1.90 | 2.33 | 2.60 | 2.91 | 3.74 |
Durability
- Wrap around clearance ring enhances suction performance while extending the service life
- Secondary seal provides redundancy adding another level of serviceability to the design of the pump
- Stainless Steel Pump Shaft for superior corrosion resistance
- Silicon Carbide Mechanical Seal for extended life and thermal stability
Service
- Gearbox sight glass provides easy visual inspection of the oil condition and level
- Integrated oil fill and vent enables easier fill access
- Four distinct mounting surfaces allow for increased installation options and orientations in a compact design

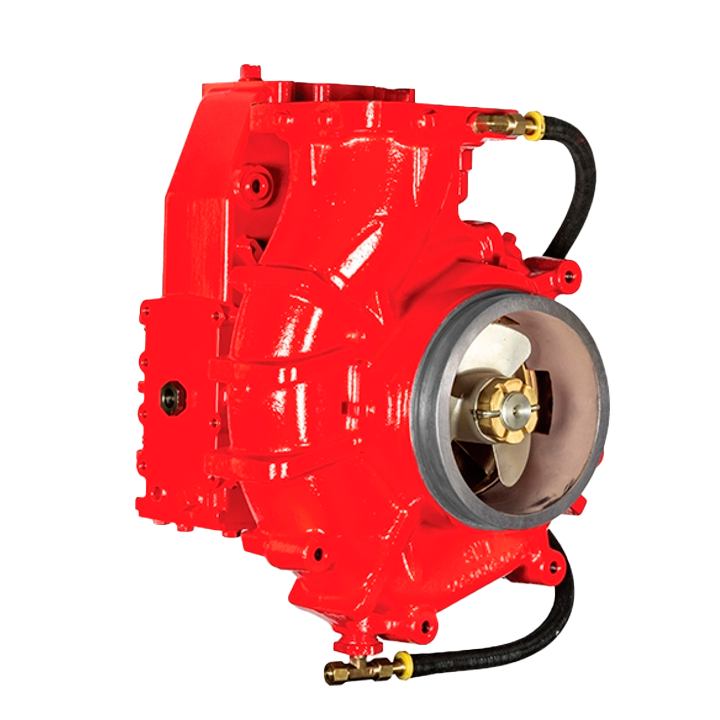

MBP Series Firefighting Water Pump
- Product code:
- 70
- Applications:
- Fire OEMs, Firefighting - Structural, Firefighting - Wildland Forestry
Technical details & documents
For the MBP Series Firefighting Water Pump
To view all documents login to your account
| Certifications | NFPA 1900 |
|---|---|
| Brand | Hale Products |
| Application Solutions | Fire OEMs, Firefighting - Structural, Firefighting - Wildland Forestry |
| Product or Spare Part | Finished Good |
| Engine Power | 0.00 HP |
| Name | Last Modified | |
|---|---|---|
|
E-1014B - MBP & MG Pump - Performance Curve 43.88 kB |
2025-02-14 | Download |
|
E-1232E - MBP - Rating Chart 122.25 kB |
2025-02-14 | Download |
|
E-1253 - MBP Rating Chart (LPS) - LS6245-2006 39.73 kB |
2025-04-23 | Download |
|
MBP-F Pump Curve - FSG-CRV-01503 313.17 kB |
2025-02-14 | Download |
|
MBP-F Rating Chart - FSG-CRV-01498 50.48 kB |
2025-02-14 | Download |
| Name | Last Modified | |
|---|---|---|
|
Operation & Installation Manual For Flex Single Stage Pumps - FSG-MNL-00183 1.89 MB |
2025-04-15 | Download |
|
Technical Manual - Flex Single Stage Booster Pumps - FSG-MNL-00184 - REV A 10.07 MB |
2025-03-18 | Download |
|
Parts Manual - Flex Series Single Stage Booster Pumps - FSG-MNL-00185 - REV A 399.51 kB |
2025-03-27 | Download |
|
FLEX Series Gearbox Plate Drawing - FSG-PL-01481 2.16 MB |
2025-04-15 | Download |
|
MBP-F Plate Drawing - FSG-PL-01486 4.09 MB |
2025-02-14 | Download |
|
HP Series Portables Operators Manual - Rev F 3.98 MB |
2025-04-15 | Download |
|
PL1026E - MBP Pump - Part Drawing 397.91 kB |
2025-02-14 | Download |
|
PL1116E - MBP Pump - Installation Drawing 1.56 MB |
2025-02-14 | Download |
|
FSG-PL-01481 FLEX SERIES GEARBOX REV D 2.16 MB |
2025-02-14 | Download |
|
FSG-MNL-00184 TM for Flex Single Stage Booster Pumps REV B 10.07 MB |
2025-02-14 | Download |
|
FSG-MNL-00185 PM Flex Single Stage Booster Pumps REV B 399.51 kB |
2025-02-14 | Download |
|
FSG-MNL-00183 OIM for Flex Single Stage Booster Pumps REV C 1.89 MB |
2025-02-14 | Download |
| Name | Last Modified | |
|---|---|---|
|
Sell Sheet - Flex Series 1.19 MB |
2025-04-15 | Download |
|
MBP - Features and benefits - Portuguese 129.80 kB |
2025-02-14 | Download |
|
MBP Pump Brochure 207.12 kB |
2025-08-22 | Download |
|
MBP - Features and benefits 126.60 kB |
2025-08-22 | Download |
|
MBP Pump Brochure - French 136.83 kB |
2025-02-14 | Download |
